Vizio Tablet Micro USB Charging Port Replacement

Автор: Jose
  • Комментарии: 1
Vizio Tablet Micro USB Charging Port Replacement

Сложность

Moderate

Шаги

9

Необходимое время

Нет оценки

Введение

  1. W1uTVANdyHFhW3UH
    W1uTVANdyHFhW3UH
    tLNT5Uf6sHfVQGDO
    HeEgAPPfjtVpD5Fd

    • Begin by using the plastic opening tool to take off the back of the tablet.

    • Starting from the sides can make the process easier.

  2. Iv2mFdmuSVNXRJle

    • Use the plastic opening tool to disconnect the LCD screen.

  3. Z3ZliyD64YkXdflN

    • Use the plastic opening tool to disconnect the camera.

  4. ival2oGahEgPeW2Y

    • Use the plastic opening tool to disconnect both of the volume buttons.

  5. ELJPgCGCNRTsNB3y
    ELJPgCGCNRTsNB3y

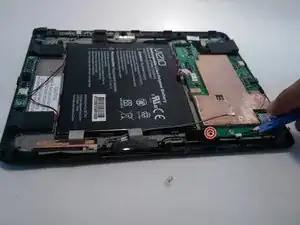

    tsE21IQWNbRQASem

    • Then, remove all four of the 2.3 mm Phillips screws.

  6. iPmKmRFXyTeDYbES

    • Remove the circuit board from the platform.

  7. FWG1AkIFEiFvrHtL

    • Remove the USB port from the circuit board.

  8. RWvWPlnuD1OyvetB

    • Insert the new USB port onto the circuit board.

  9. TWGjCZJJx6NvsDCq

    • Lastly, fuse the USB port back onto the circuit board.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Jose

Участник c: 31/05/16

125 Репутация

Один комментарий

Thank you it was very helpful simple and straight to the point
